WJD-2
Hunk
Technical specification:
===================

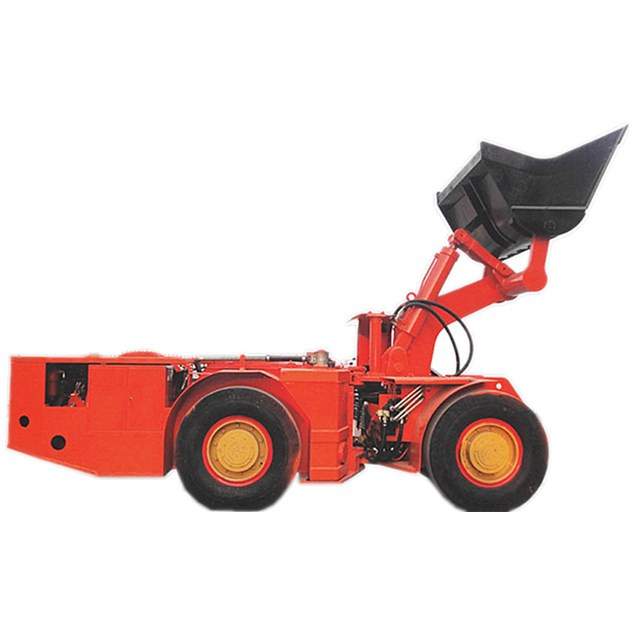

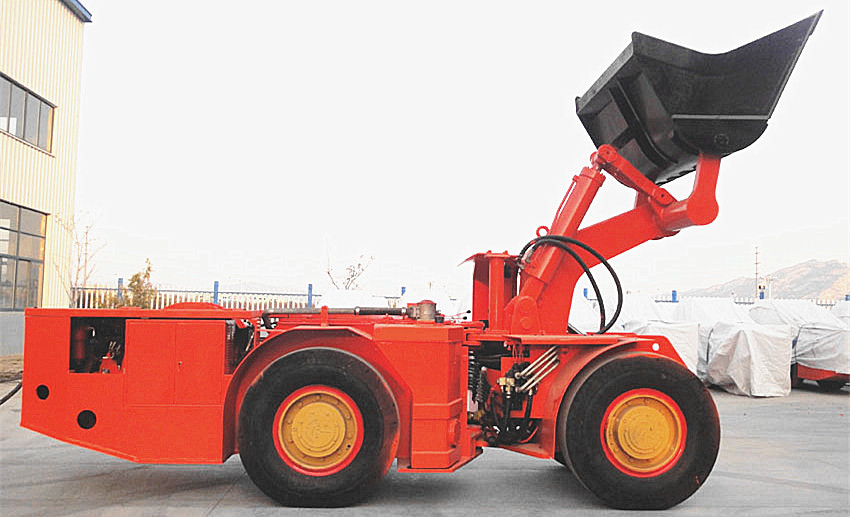

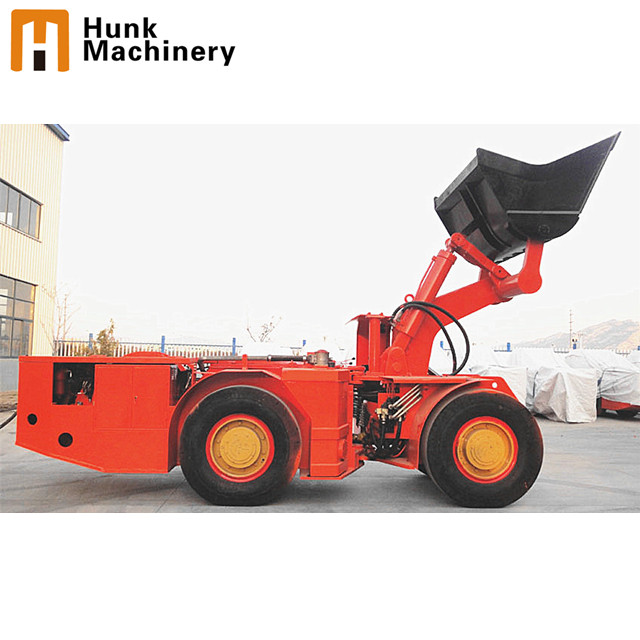

Product name: WJD-2 Electric underground loader scooptram LHD 2 CBM
Electromotor
Electromotor voltage is optional according to different country.
Transmission and converter
DANA TR20000 or R32000 transmission and C 270 series torque converter.
Axles
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others
Central articulated, hydraulic power steering.
Main Technical Parameter:
| Electromotor | HM2-280S-4 / 75KW, 380V 50HZ Voltage is optional according to different country. | ||
| Bucket volume (SAE) | 2 m3 | Arm raising time | 7s |
| Tramming capacity | 4000 kg | Bucket dumping time | 5s |
| Max. tractive force | 104 kN | Min. clearance | 280 mm |
| Max. shovel force | 102 kN | Max. discharge angle | 40 degrees |
| Max. discharging height | 1830 mm | Max. turning angle | 42 degrees |
| Max. raising Height | 3985 mm | Rear axle oscillation | 7 degrees |
| Max. gradeability (First) | 15 degrees | Leaving angle | 16 degrees |
| Min. discharge distance | 880 mm | Wheelbase | 2540 mm |
| Speed (loaded) | First gear | Second gear | Third gear |
| Forward and reverse | 0-3.6 km/h | 0-6.7 km/h | 0-11.3 km/h |
| Min.turning radius | 4980 mm(outer) 2500 mm(inner) | Tyre specification | 12.00-24 |
| Dimension | 7430 mmL* 1770mmW* 2050 mmH | Overall weight | 13400 kg |
