| Application: | |
|---|---|
| Bucket size: | |
| Tramming capacity: | |
| Dimension: | |
| Warranty: | |
| Quantity: | |
WJD-1
Hunk
Technical specification:
===================

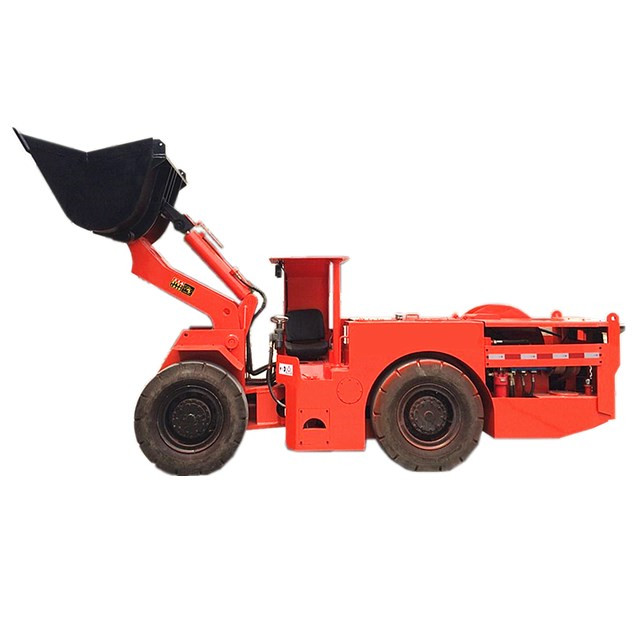

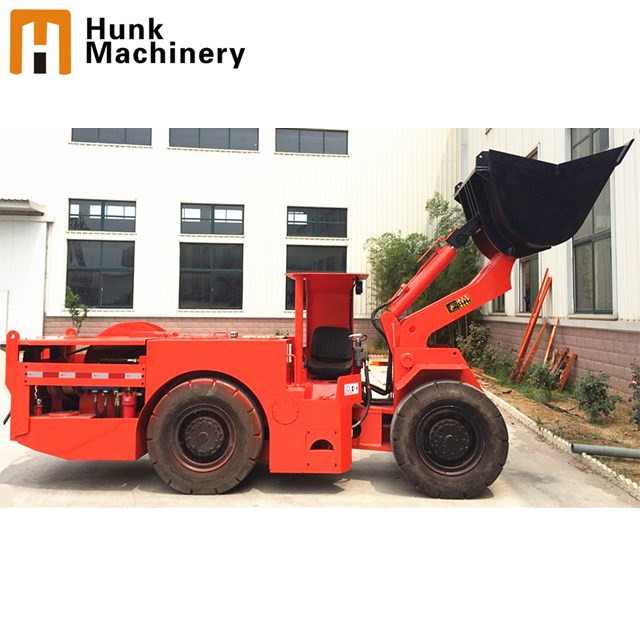

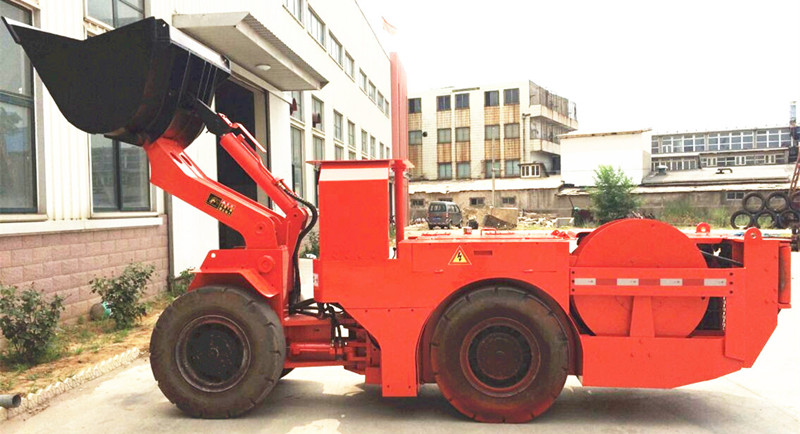

Product name: WJD-1 Electric underground loader scooptram LHD 1 CBM
Electromotor voltage is optional according to different country.
SAUER 20 series variable pump and variable motor.
Parking brake is spring applied and hydraulic release.
Priority hydraulic control.
Central articulated.
Main Technical Parameter：
| Electromotor | 37 kw, 380V 50 HZ Voltage is optional according to different country. | ||
| Bucket volume | 1 m3 | Speed | 0-8 km/h |
| Tramming capacity | 2000 kg | Max. gradeability | 15 degrees |
| Max. tractive force | 56 kN | Min. clearance | 200 mm |
| Max. shovel force | 48 kN | Leaving angle | 15 degrees |
| Max. discharge Height | 1050 mm | Rear frame oscillation | 8 degree |
| Min. discharge distance | 860 mm | Wheelbase | 2200 mm |
| Max. turning angle | 38 degrees | Tyre specification | 10.00-20 |
| Min. turning radius | 4260 mm(Outer) 2540 mm(Inner) | Total weight | 7200 kg |
| Dimension | Length 6090 mm Width 1300 mm Height 2000 mm | ||
