WJ-4
Hunk
Technical specification:
===================

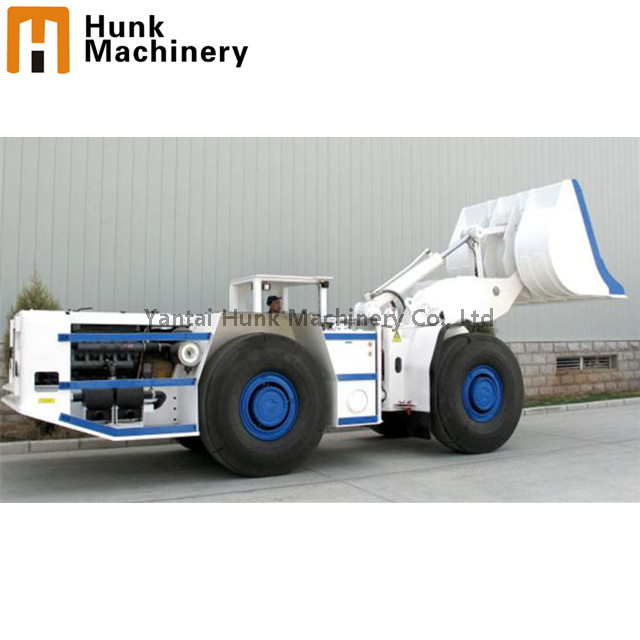

Product name: WJ-4 Underground loader scooptram LHD 4 CBM
Engine
DEUTZ B10L413FW.
Transmission and converter
DANA R32000 transmission and C8000 torque converter.
Axles
Front: Kessler D102 No spin
Rear: Kessler D102 Posi-Torq ±10°
Main technical parameter:
| Diesel engine | DEUTZ B10L413FW 170kW/2300 rpm | ||
| Bucket volume | 4 m3 | Bucket dumping | 5.5 s |
| Tramming capacity | 9500 kg | Arm lift time | 5.9 s |
| Max. traction force | 217 kN | Min. clearance off-road | |
| Max. shovel force | Max. discharge angle | 42 degrees | |
| Max. discharge height | 2050 mm | Max. turning angle | 40 degrees |
| Max. lift height | 4931 mm | Rear axle oscillation | 10 degrees |
| Min. discharge distance | 1701 mm | Leaving angle | 25 degrees |
| Max. gradeability | 25 degrees; | Wheelbase | 3370 mm |
| Min. steering radius | 6650 mm(outer) 3345 mm(inner) | Tyre specification | 18*25 |
| Speed (load) forward and reverse | |||
| First gear | Second gear | Third gear | Forth gear |
| 0-4.0 km/h | 0-8.3 km/h | 0-15.4 km/h | 0-25.0 km/h |
| Dimension | 9363 mmL*2740 mmW*1790 mmH | Overall weight | 25300 kg |
