WJ-2
Hunk
Technical specification:
===============

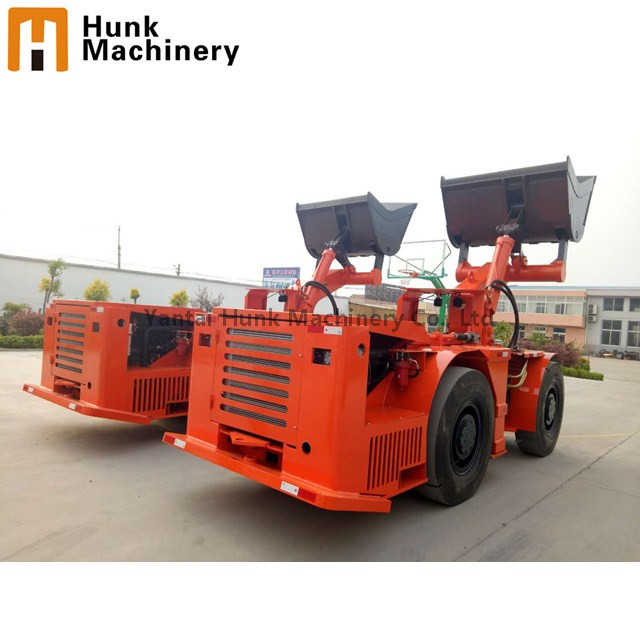

Product name: WJ-2 Underground Loader
Engine
DEUTZ F6L912W or BF4M1013EC engine.
Transmission and converter
DANA TR20000 or R32000 transmission and C 272 series torque converter.
Axles
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others
Central articulated, hydraulic power steering.
Main Technical Parameter:
| Engine | DEUTZ F6L912W, 63 kw or BF4M1013EC, 102 kw | ||
| Bucket volume (SAE) | 2 m3 | Arm raising time | 7 s |
| Tramming capacity | 4000 kg | Bucket dumping time | 5 s |
| Max. breakout force | 102 kN | Min. clearance | 280 mm |
| Max. traction | 104 kN | Max. discharge angle | 40 degrees |
| Max. discharge height | 1743 mm | Max. turning angle | 42 degrees |
| Max. raising height | 4218 mm | Rear axle oscillation | 7 degrees |
| Max. gradeability (first) | 20 degrees | Leaving angle | 16 degrees |
| Min. discharge distance | Wheelbase | 2540 mm | |
| Speed (loaded) | First gear | Second gear | Third gear |
| Forward and reverse | 0-3.8 km/h | 0-8.4 km/h | 0-22.8 km/h |
| Min. turning radius | 4768 mm(outer) 2461 mm(inner) | Tyre specification | 12.00-24 |
| Dimension | 6820 mmL*1780 mmW* 1950 mmH | Overall weight | 12500 kg |
