WJ-1.5 Underground loader scooptram LHD 1.5 CBM

Engine:
DEUTZ F6L912W or BF4M1013EC engine.
Transmission and converter:
DANA RT 20000 or R32000 transmission and C 272 series torque converter.
Axles:
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others:
Central articulated, hydraulic power steering.
Application:
Bucket size:
Tramming capacity:
Dimension:
Warranty:
Availability:
Quantity:
  • WJ-1.5

  • Hunk

Technical specification:

===================

Product name: WJ-1.5 Underground loader scooptram LHD 1.5 CBM

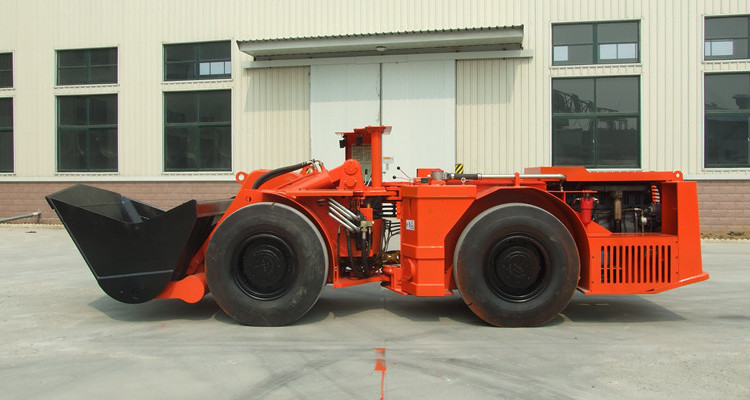

diesel 2.0 ali_副本

Engine
DEUTZ F6L912W.
Transmission and converter
DANA TR20000 series transmission and C 272 series torque converter.
Axles
Service brake is fully enclosed multiple wet discs brake, spring applied and hydraulic released.
NO-SPIN differential in front axle.
Others
Central articulated, hydraulic power steering.

Main Technical Parameter:


Engine DEUTZ F6L912W, 63 kw or BF4M1013EC, 102 kw
Bucket volume (SAE) 1.5 m3 Arm raising time ≤7 s
Tramming capacity 3000 kg Bucket dumping time ≤5 s
Max. breakout force 98 kN Min. clearance 280 mm
Max. shovel force 104 kN Max. discharge angle 40°
Max. discharge height 1476 mm Max. turning angle ±42°
Max. raising height 4218 mm Rear axle oscillation ±8°
Max. gradeability (first) 15° Leaving angle 15°
Min. discharge distance 1076 mm Wheelbase 2540 mm
Speed (loaded) First gear Second gear Third gear
Forward and reverse 0-4.4 km/h 0-10.7 km/h 0-19.4 km/h
Min. turning radius 4720 mm(outer)              2660 mm(inner) Tyre specification 12.00-24
Dimension 6750 mmL*1760 mmW* 2080 mmH Overall Weight 11200 kg
