WJ-0.5
Hunk
Technical specification:
===================

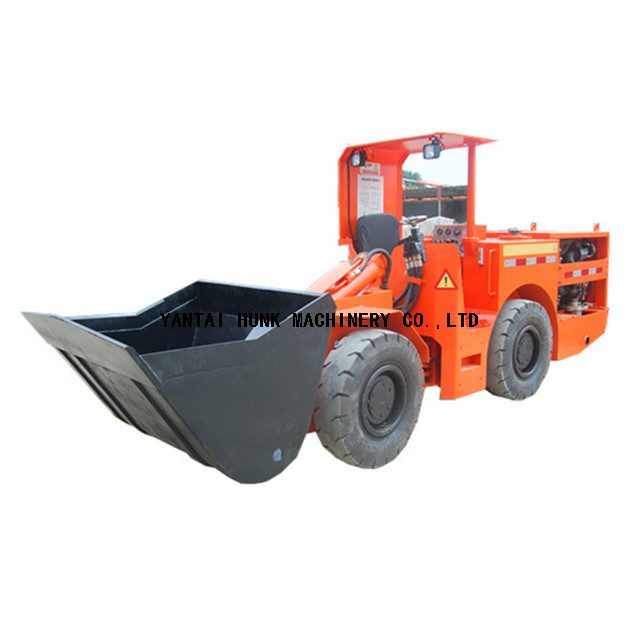

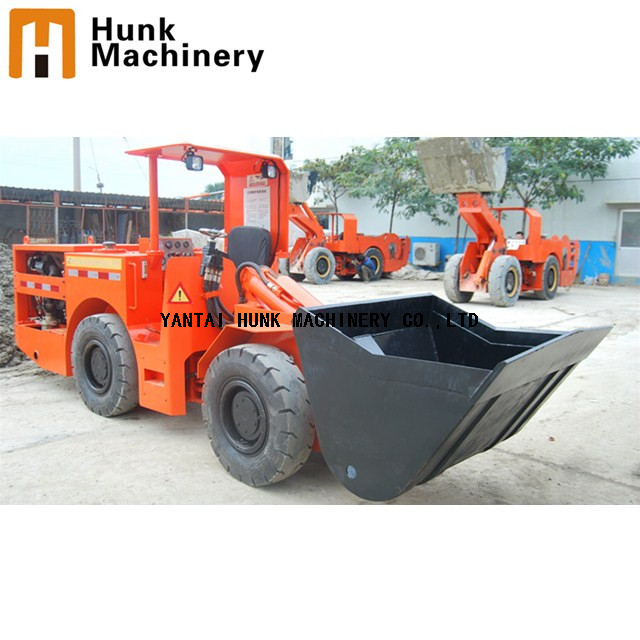

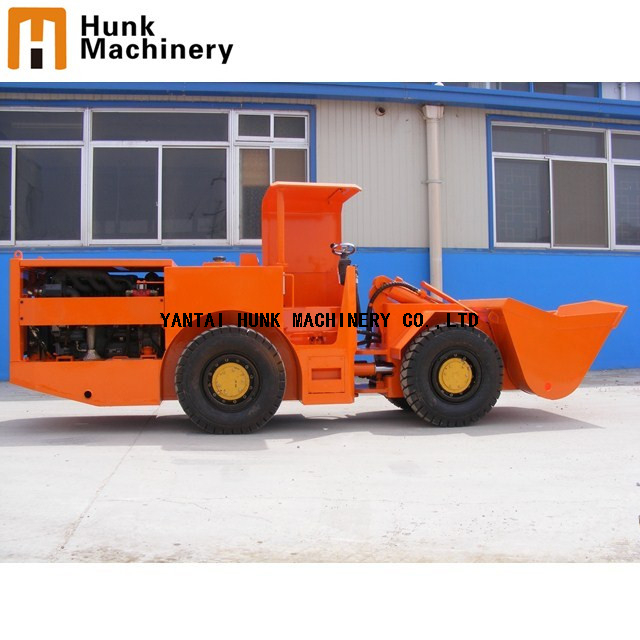

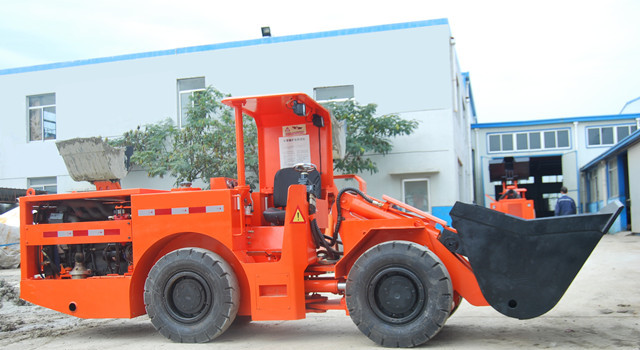

Product name: WJ-0.5 Underground loader scooptram LHD 0.5 CBM
DEUTZ engine.
SAUER-DANFOSS hydraulic pump and motor.
The rear axle oscillates with double supports.
Steering system is double cylinders, so the machine turns stably and flexibly.
Working system is priority hydraulic control.
Braking system is multidisc wet brake, spring applied and hydraulic release.
Service brake, parking brake and emergency brake are integrated.
The bucket is V structure with low resistance.
Main Technical Parameter:
| Engine | DEUTZ F4L912TW, 46KW, 2300 rpm / BF4L2011, 47.5 KW, 2300 rpm | ||
| Bucket Size | 0.5 m3 | Speed | 0-8 km/h |
| Tramming Capacity | 1.2 tons | Max. gradeability | 20 ° |
| Max. breakout Force | 35 kN | Min. clearance | 200 mm |
| Max. traction | 42 kN | Leaving angle | 15 ° |
| Max. discharge height | 900 mm | Rear axle oscillation | ± 8° |
| Max. turning angle | ± 38 ° | Wheelbase | 1735 mm |
| Min. turning radius | 3400 mm(Outer) 1950 mm(Inner) | Tyre specification | 7.50-25-14 |
| Dimension | Length: 5050 mm Width: 1150 mm Height: 1950 mm | ||
| Overall Weight: | 4.4 tons | ||
