WJ-1 Underground Loader

DEUTZ engine BF4L914 or F6L912W.

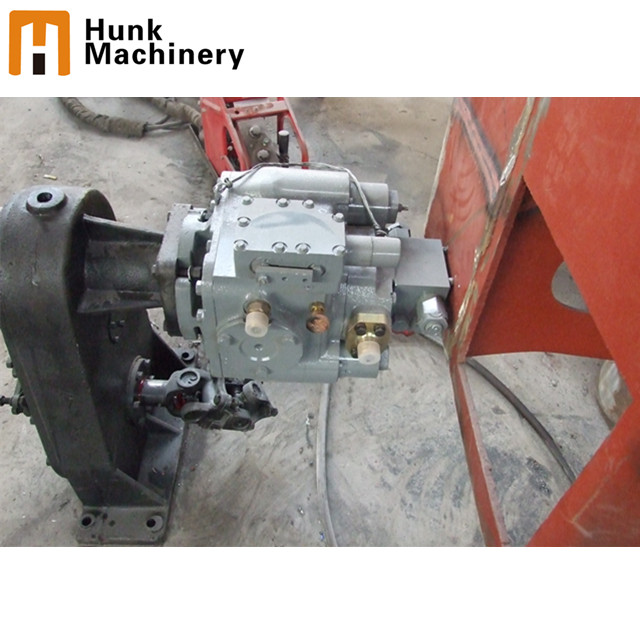

SAUER 20 series variable pump and variable motor.
Parking brake is spring applied and hydraulic release.
Priority hydraulic control.
Central articulated.

Application:
Bucket size:
Tramming capacity:
Dimension:
Warranty:
Quantity:
  • WJ-1
  • Hunk

Technical specification:

===================

Product name: WJ-1 Underground Loader

WJ-0.75_详主

DEUTZ engine BF4L2011 or F6L912W.
SAUER 20 series variable pump and variable motor.
Priority hydraulic control.
Braking is friction disc brake. Spring applied and hydraulic release.
Central articulated.


Main Technical Parameter:


Engine DEUTZ F6L912W, 63 kw, 2300 rpm
/ BF4L2011, 47.5 kw, 2300 rpm
Bucket 1 m3 Speed 0-10 km/h
Tramming capacity 2000 kg Max. gradeability 15°
Max. tractive force 56 kN Min. clearance 200 mm
Max. shovel force: 48 kN Leaving angle 15°
Max. discharge height 1050 mm Rear frame oscillation ± 8°
Min. discharge distance 860 mm Wheelbase 2200 mm
Max. turning angle ± 38 ° Tyre Specification 10.00-20
Min. turning radius 4260 mm (Outer)
2540 mm (Inner)
Total Weight 7200 kg
Dimension Length 6030 mm   Width 1300 mm   Height 2000 mm
